3mm or 4.5mm diameter Galfan coated wire deflection video

Electronically welded wire mesh 75mm x 75mm grid

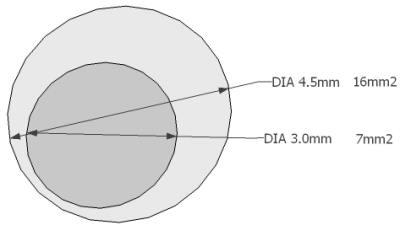

4.5mm dia wire is 125% stronger than 3.0mm diameter wire

4.5mm dia wire is 26.5% stronger than 4.0mm diameter wire

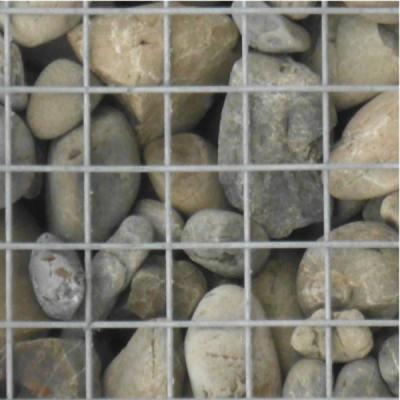

Angular rock is the best gabion fill as it provides a good interlock and therefore less deformation of the face occurs. When using rounded river rock as gabion fill, it is recommended that you use the heavier 4.5mm gabion baskets, which are less likely to deform under load. Also 4.5mm wire is the preferred choice where an uniform architectural look is required.

In locations where high flood water velocities are expected, carrying woody debris and gravels in suspension, the stronger 4.5mm welded gabions are the preferred choice, to resist damage to the gabion structures during floods.
