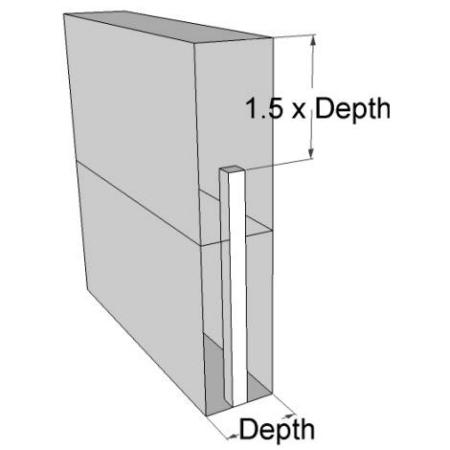

Gabion support posts
Gabion support posts must extend to at least 1.5 x Depth from the top of the gabion basket

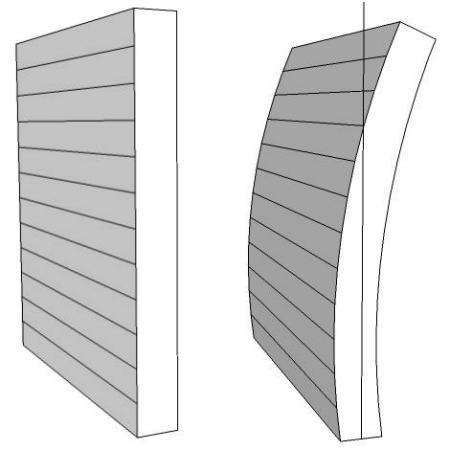

Wall stability
Retaining walls with additional loads on top of them, e.g. driveways, banks, buildings, will require extra thickness, and possibly an engineer’s design.

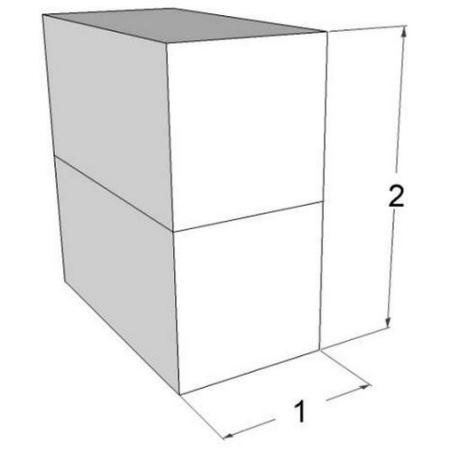

Wall profiles
Free standing or retaining walls should not exceed the 2:1 ratio
click here for profile info

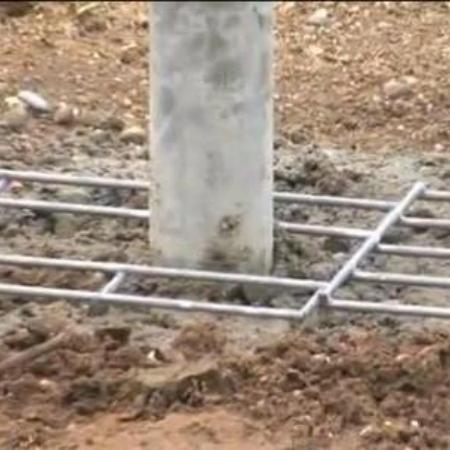

Steel Post Details
Hollow steel posts need capping to prevent water entry.

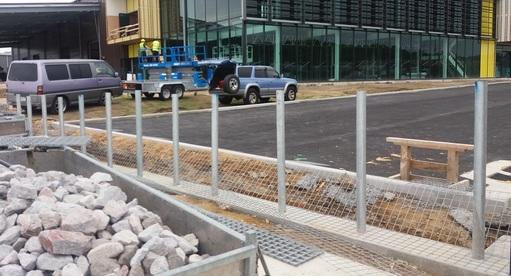

Post Spacing Guide
Gabion support posts spacing should be no greater than 1.0m.

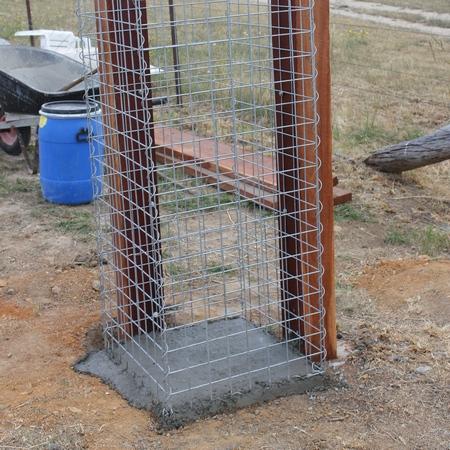

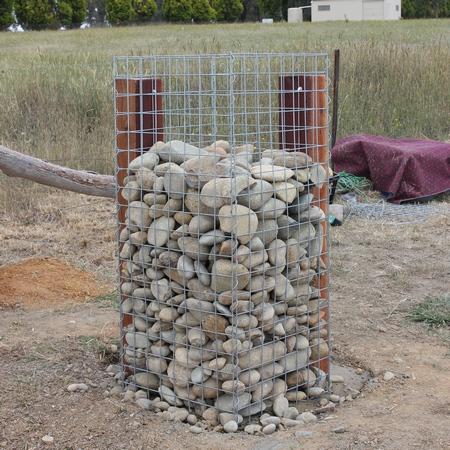

Wall Foundations
Supported gabion wall foundations.

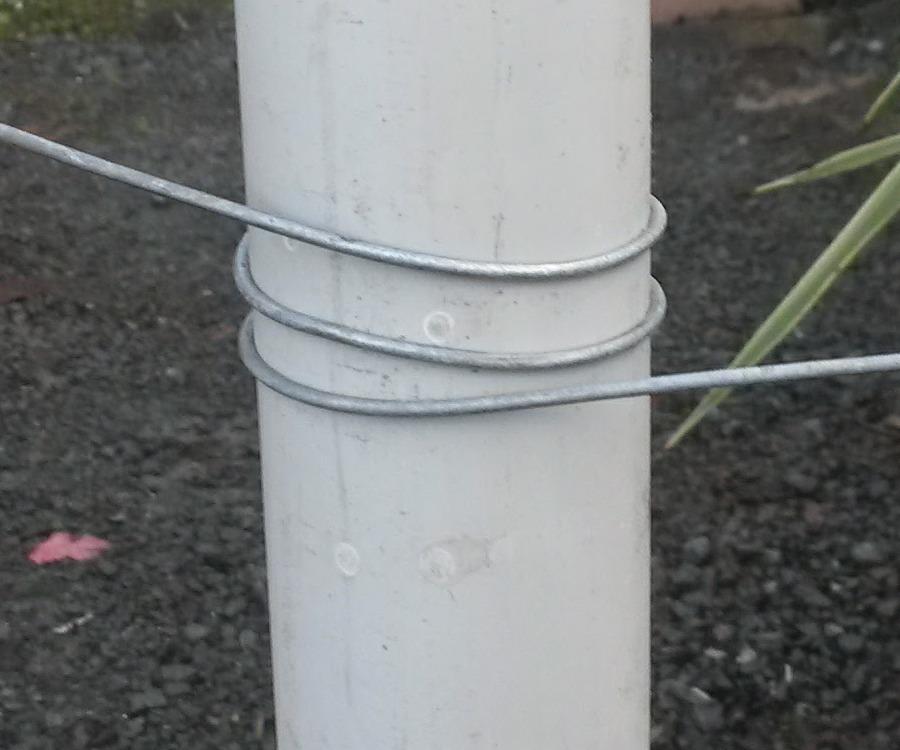

Bracewire Example
Bracewire wrapped around support post.

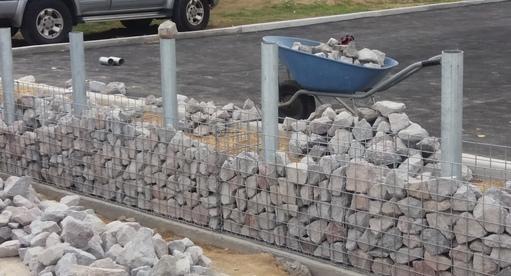

Post Example
Support post in non-retaining wall.
Wall Advise
Posts are not recommended for retaining walls.
