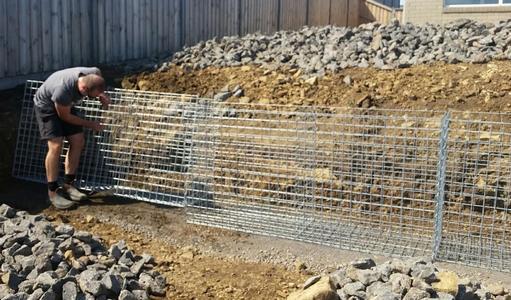

Gabion panel construction

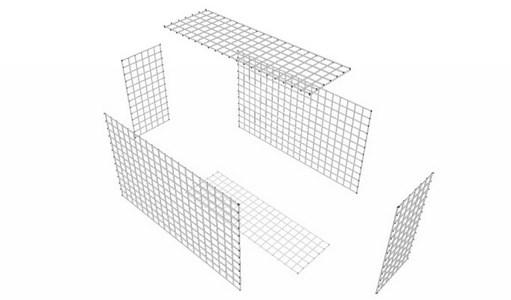

6 panels are used to construct gabions.

Shared end panels may not be needed.

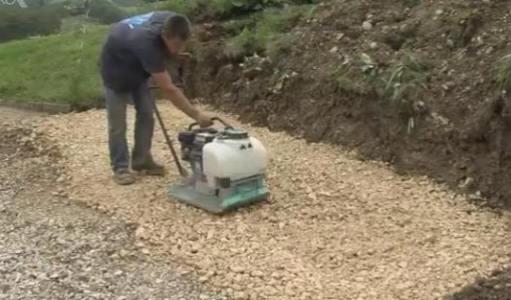

Check out the info on foundations

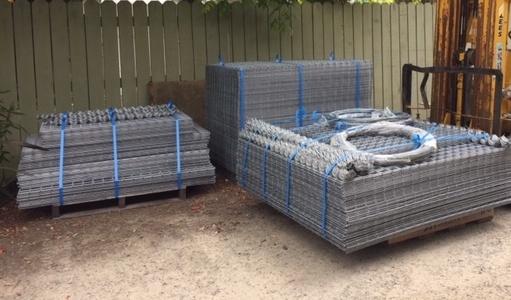

Smaller orders are sent by courier, all orders are sent flat packed

No structural gabion walls, can use lower grade rock as infil

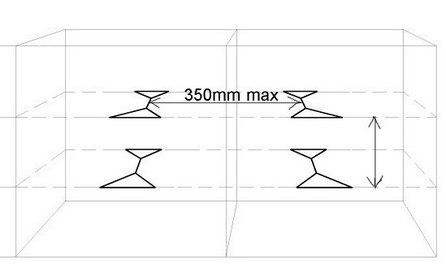

Bracewire video, spacing 350mm

More information on mesh selection here

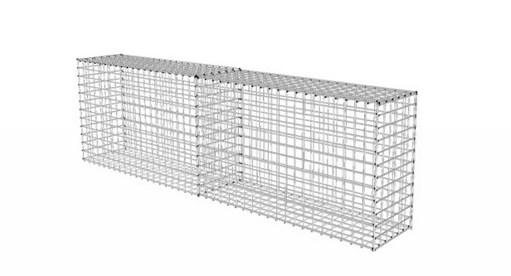

Complete with bracewires, longer gabions are supplied with diaphragms

Max spacing of bracewires is 350mm in both directions

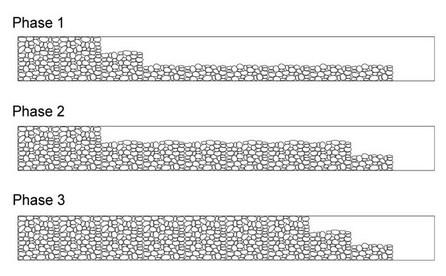

How to fill the gabions

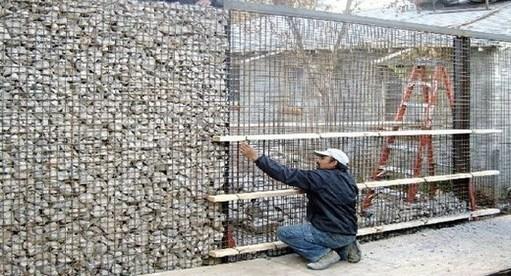

Using temporary bracing during rock installation

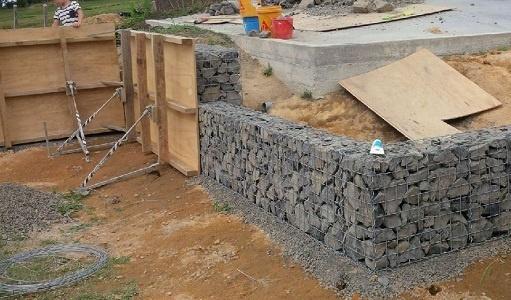

Plywood formwork can be used to get straight walls

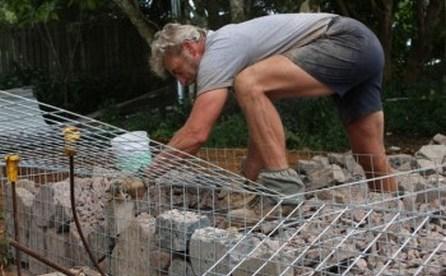

Carefully place the rocks to achieve the desired look for your gabion wall.

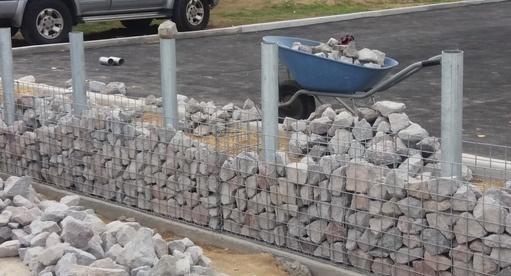

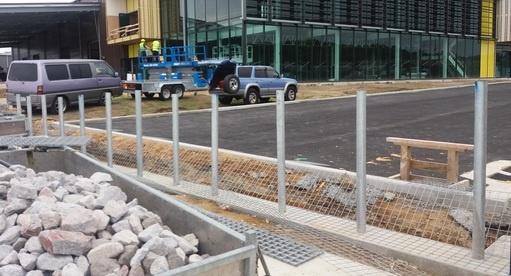

Support posts are required for tall gabion walls to add stability and prevent collapse.

The strength of gabions relies on tightly packed, heavy, durable fill. Lightweight fill compromises their ability to resist loads.
