Gabion Toe Guidelines
Low cost retaining
Gabion Baskets for Retaining Walls Toe and Footing Design Guidelines
Typical Gabion Retaining Wall Sections

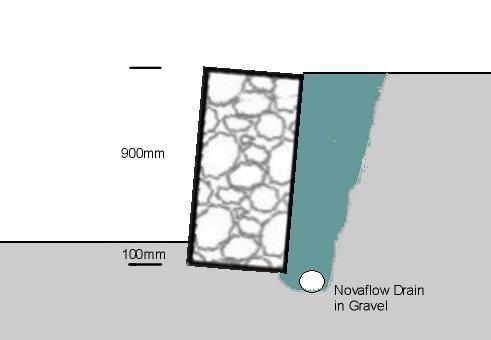

900mm High Gabion Retaining Wall

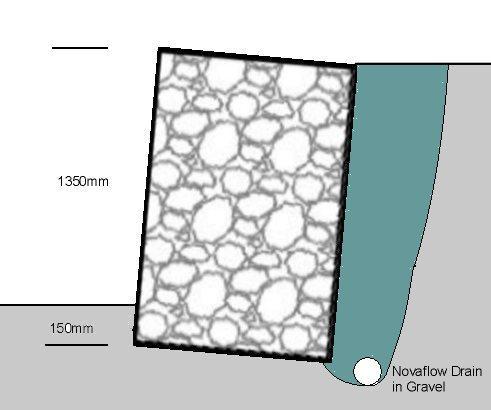

1.35m High Gabion Retaining Wall

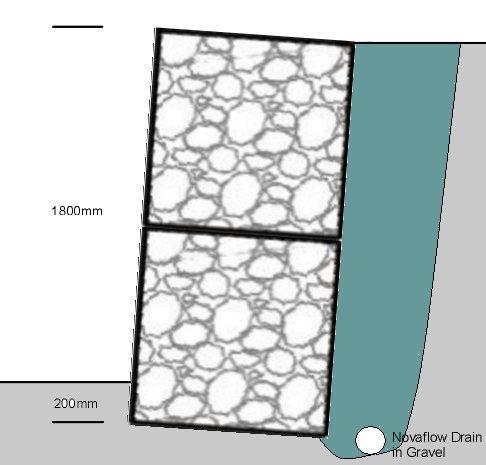

1.8m High Gabion Retaining Wall

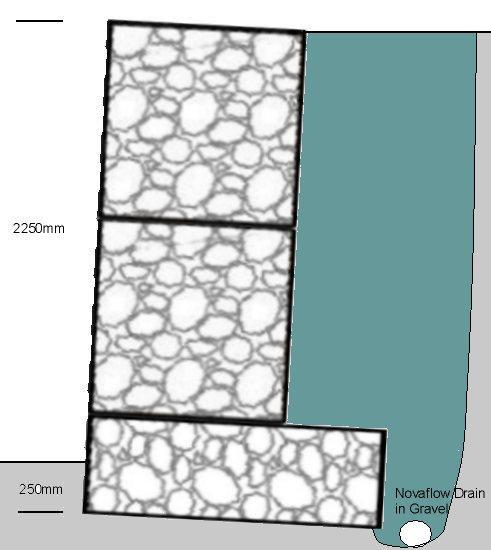

2.25m High Gabion Retaining Wall

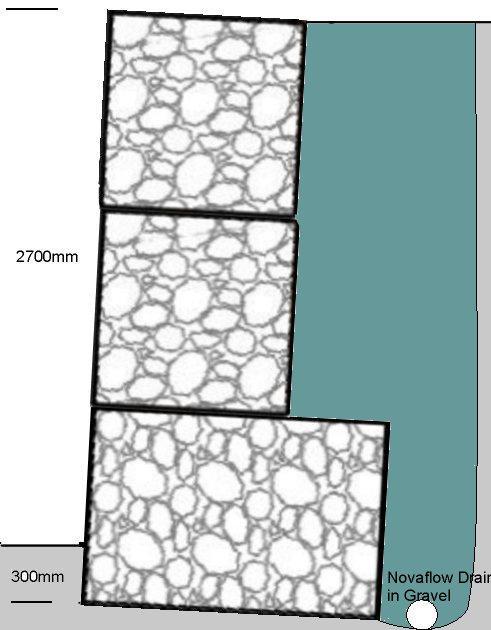

2.7m High Gabion Retaining Wall
NOTES:
Guidance for Gabion Design
Soil Investigation:
Wall designed by an engineer.
Improved Stability:
Use free draining granular material.
Gabion Wall Sliding:
The toe prevents the wall sliding forwards.
Additional Surcharges:
Increase the size of the gabions.
Machine Filled Layers:
Picking the stone over by hand.
Angular Rock:
Provides a good interlock.
