Gabion Assembly Instructions
Low Cost Stone walls
Cheap easy to build gabion rock walls, shipped Australia wide in kit set

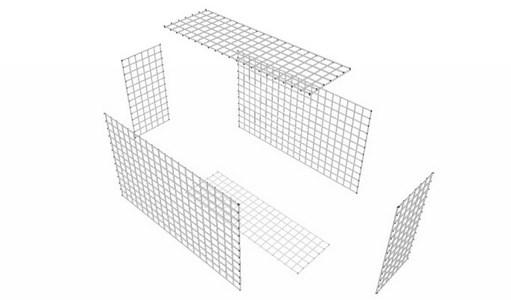

To build the first gabion structure, you'll require 6 gabion panels, as demonstrated in the following video.

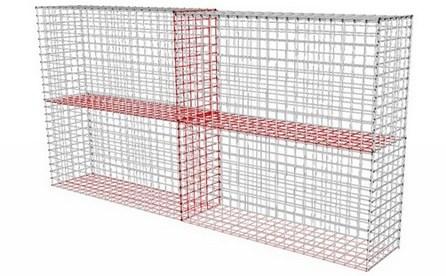

Shared end panels may not be needed
Unseen internal panels can be 3mm wire mesh
Check out the info on foundations

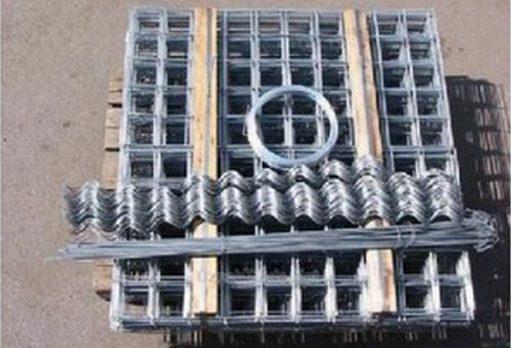

Gabion kitset ready for dispatch
Watch our youtube video on Helical connectors
Watch our youtube video on brace wire installation
How to assemble a gabion basket in under 4 minutes
Which welded mesh 3mm or 4.5mm
Gabions ready for rock, long gabions come with diaphragms

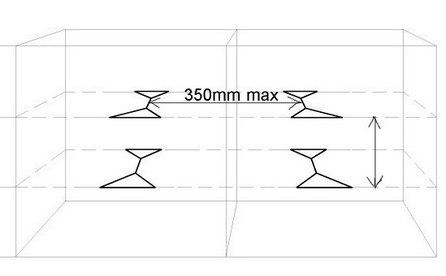

Max spacing of bracewires 350mm in both directions
Temporary wires at the top of the gabion, will make it easier to install the lid
For 3mm mesh, add temporary supports before filing gabions

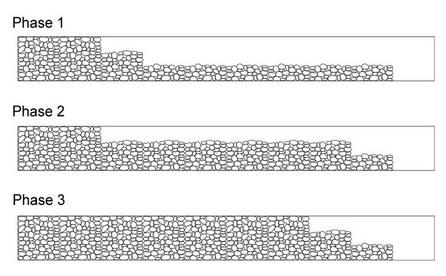

How to fill the gabions

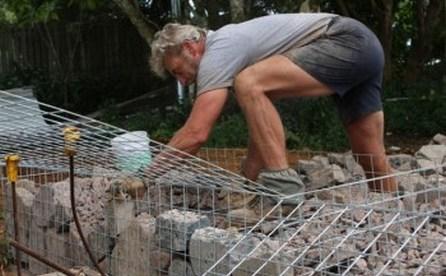

The "best rocks" are hand placed on the face of the gabion
Under or over sized rocks placed in the middle of the wall

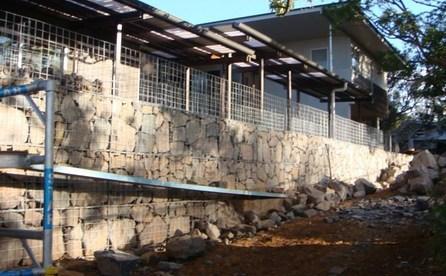

Additional rows of gabion baskets added to wall

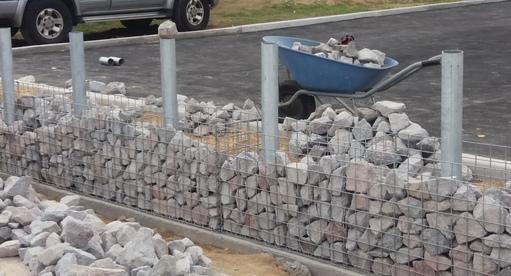

Gabion walls over 2:1 stability ratio will require support posts
Check out the info on wall stability. Support posts are not recommended fro retaining walls, unless engineer designed.
